2.79 Inch Bar Type TFT Display with 142x428 Resolution and SPI Interface for Industrial Applications
| Lugar de origen | PORCELANA |
|---|---|
| Nombre de la marca | HuaXin |
| Certificación | ISO14001/ISO9001/IATF16949 |
| Número de modelo | HX0279-01 |
| Cantidad de orden mínima | 1000 |
| Precio | Negotiated |
| Detalles de empaquetado | Blister+Box de espuma+bolsa de burbujas+Carton interior+Carton Master |
| Tiempo de entrega | 6 semanas ~ 8 semanas |
| Condiciones de pago | T/T |
| Capacidad de la fuente | 100 mil al mes. |
Éntreme en contacto con gratis las muestras y los vales.
WhatsApp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.
xDatos del producto
| Tecnología de visualización | Pantalla LCD | Nombre | TFT LCD |
|---|---|---|---|
| Tamaño | 2,79“ | Tipo de visualización | IPS |
| Interfaz | SPI | ángulo de vista | todo |
| Resolución | No puedo. | Brillo | 400C/D |
| Resaltar | 2.79 Inch Bar Type TFT Display,142x428 Resolution TFT LCD,Industrial Applications IPS Display |
||
Puede marcar los productos que necesita y comunicarse con nosotros en el tablero de mensajes.
Descripción de producto
2.79 Inch Bar Type TFT Display with 142x428 Resolution and SPI Interface
High-performance industrial-grade TFT display featuring bar-type form factor, SPI interface, and excellent viewing characteristics.
Product Specifications
| Parameter | Value |
|---|---|
| Part No. | HX0279-01 |
| Display Size | 2.79 inch bar type TFT display |

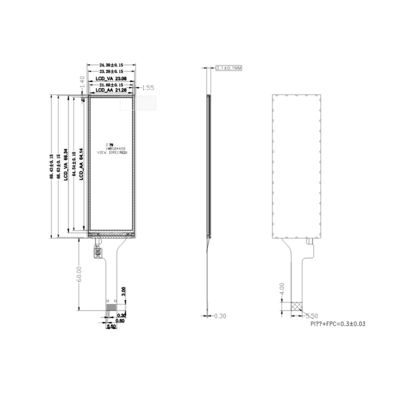

| Outline Size (mm) | 24.38*69.43*2.1 |
| AA Size (mm) | 21.28x64.14 |
| Resolution | 142x428 |
| Interface | SPI |
| Driver IC | NV3007 |
| Brightness | 400c/d |
| View Angle | ALL |

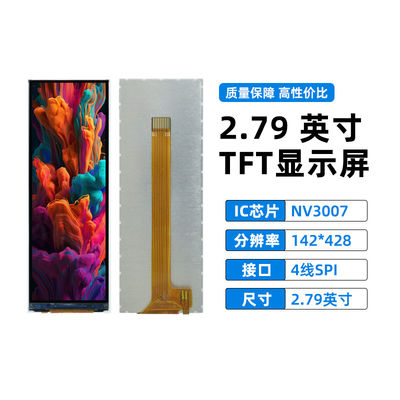

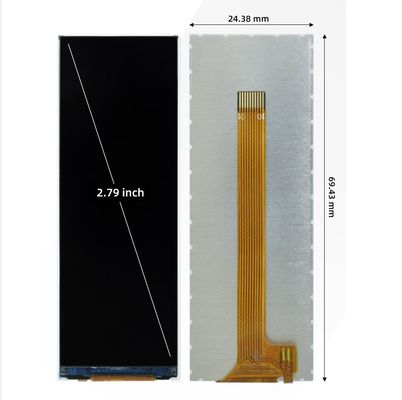

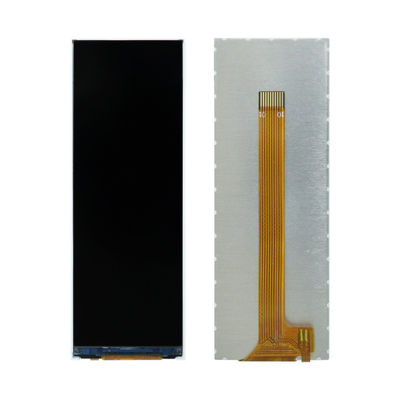

Product Images
TFT Technology Overview
Key Features
- Superior Image Quality: High resolution, sharpness, and color accuracy
- Fast Response: Quick pixel switching for smooth performance
- Wide Viewing Angles: Clear visibility from multiple positions
- Energy Efficient: Optimized power consumption
- LED Backlit: Bright, uniform illumination
Applications
- Car navigation systems & printers
- Video communication & digital signage
- Automotive interfaces & medical devices
- Fitness equipment & handheld devices
- Industrial control systems & home appliances
Technical Considerations
Potential Limitations
- Optimal viewing within specific angles
- Contrast ratio limitations in bright environments
- Backlight power requirements
- Potential motion blur in fast-moving content
- Fixed form factor (non-flexible)
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
Hubei, Enshi | Founded: 2009
High-tech enterprise specializing in LCD, LCM, TFT, backlight, and OLED solutions with 500+ employees and 20+ years of industry experience.
Company Advantages
- Cost-effective inland manufacturing base
- Advanced automated production equipment
- 20+ years experienced engineering team
- Custom design capabilities
- Certifications: ISO14001, ISO9001/IATF16949, SGS
Product Portfolio
- LCD: VA, TN, HTN, STN, FSTN, CSTN series
- LCM: COB, TBA, COG, TP, LED backlight series
Production Capacity
| Product Type | 2021 | 2022 | 2023 | 2024 | 2025 | Unit |
|---|---|---|---|---|---|---|
| LCD Production | 4.5 | 9 | 9 | 9 | 9 | Thousands/Day |
| LCM Production | 70 | 150 | 300 | 450 | 450 | Thousand pieces/Day |
| Backlight Production | 100 | 200 | 300 | 500 | 500 | Thousand pieces/Day |
| OLED Production | 10 | 20 | 30 | 40 | 50 | Thousand pieces/Day |
