1.1 Inch AMOLED Display Module with 126*294 Resolution and 450cd/m2 oncell touch 4-SPI interface

  • 1.1 Inch AMOLED Display Module with 126*294 Resolution and 450cd/m2 oncell touch 4-SPI interface
  • 1.1 Inch AMOLED Display Module with 126*294 Resolution and 450cd/m2 oncell touch 4-SPI interface
  • 1.1 Inch AMOLED Display Module with 126*294 Resolution and 450cd/m2 oncell touch 4-SPI interface
  • 1.1 Inch AMOLED Display Module with 126*294 Resolution and 450cd/m2 oncell touch 4-SPI interface
  • 1.1 Inch AMOLED Display Module with 126*294 Resolution and 450cd/m2 oncell touch 4-SPI interface
Lugar de origen Porcelana
Nombre de la marca HuaXin
Certificación ISO14001/ ISO9001/IATF16949
Número de modelo HX022A-MA1
Documento HX022A-MA1 SPEC.pdf
Cantidad de orden mínima 1000
Precio Negociable
Detalles de empaquetado Blister+Box de espuma+bolsa de burbujas+Carton interior+Carton Master
Tiempo de entrega 6 semanas ~ 8 semanas
Condiciones de pago T/T
Capacidad de la fuente 50k por mes

Éntreme en contacto con gratis las muestras y los vales.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Tecnología de visualización pantalla AMOLED Nombre pantalla OLED
Tamaño 1.1 " Resolución Las demás partidas
Brillo 450cd/m2 Interfaz 4-SPI
Impulso SH8501A1
Puede marcar los productos que necesita y comunicarse con nosotros en el tablero de mensajes.
Deja un mensaje
Descripción de producto
1.1 Inch  AMOLED Display Module with 126*294 Resolution and 450cd/m2  oncell touch  4-SPI interface
Product Parameters
Part No. HX022A-MA1
Display Size 1.1 inch AMOLED display
Outline Size (mm) 12.96*30.94
AA Size (mm) 10.962*25.578
Resolution 126X294
Interface 4-SPI
Brightness 450c/d
View Angle all
Driving IC  SH8501A1
Touch screen oncell /CHSC1716

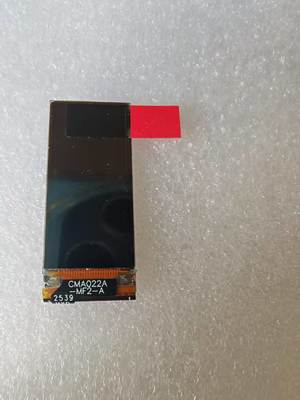

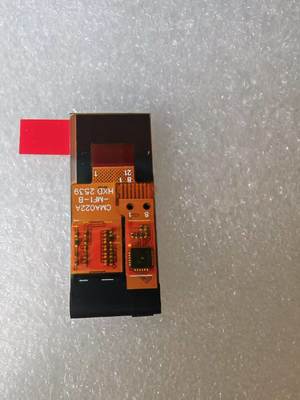

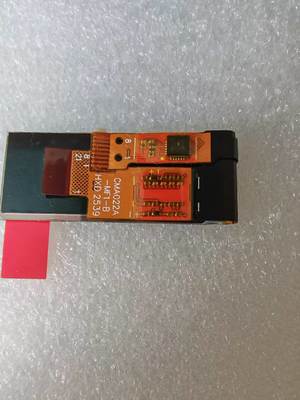

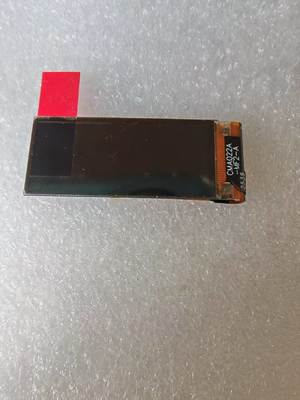

Product Images

1.1 Inch AMOLED Display Module with 126*294 Resolution and 450cd/m2 oncell touch 4-SPI interface 0

1.1 Inch AMOLED Display Module with 126*294 Resolution and 450cd/m2 oncell touch 4-SPI interface 1

1.1 Inch AMOLED Display Module with 126*294 Resolution and 450cd/m2 oncell touch 4-SPI interface 2

1.1 Inch AMOLED Display Module with 126*294 Resolution and 450cd/m2 oncell touch 4-SPI interface 3


Drawing & Pin Definition
1.1 Inch AMOLED Display Module with 126*294 Resolution and 450cd/m2 oncell touch 4-SPI interface 4

OLED Technology Overview
OLED Advantages
  • Lighter and thinner than LCD displays
  • High contrast ratio
  • Excellent color saturation
  • Lower power consumption
OLED Disadvantages
  • Higher cost compared to LCD and TFT
  • Shorter operational lifetime than LCD and TFT
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
Founded: 2009 | Location: Hubei, Enshi
Registered capital: 20 million | Employees: 500+
R&D: 10% of workforce | QC: 15% of workforce
Company Advantages
  • Cost-effective inland production base
  • Advanced equipment for stable quality
  • Automated processes for efficiency
  • 20+ years of LCD industry experience
  • Custom design capabilities
Certifications
  • ISO14001
  • ISO9001/IATF16949
  • SGS certified LCD modules
Production Capacity
Product Type 2021 2022 2023 2024 2025 Unit
LCD Production 4.5 9 9 9 9 Thousands/Day
LCM Production 70 150 300 450 450 Thousand Pieces/Day
Backlight Production 100 200 300 500 500 Thousand Pieces/Day
OLED Production 10 20 30 40 50 Thousand Pieces/Day
Product Applications
  • Safety boxes & instruments
  • Locks & smart home devices
  • Transmitters & watches
  • Radios & navigation devices
  • Collimators & medical equipment
AMOLED Display Characteristics
  • Self-emissive pixels
  • Superior contrast ratio
  • Excellent color accuracy and vibrancy
  • Wide viewing angles
  • Power efficiency
  • Thin and flexible design
  • Fast response time
Power Efficiency Comparison
AMOLED vs. LCD/LED Displays
  • Power Consumption: AMOLED consumes power per-pixel, while LCD requires constant backlight
  • Content Dependency: AMOLED is more efficient for dark content as pixels can turn off
  • Brightness Control: AMOLED adjusts brightness per-pixel, LCD has fixed backlight
  • Display Size: AMOLED more efficient for smaller displays, LCD backlights consume more power at larger sizes
